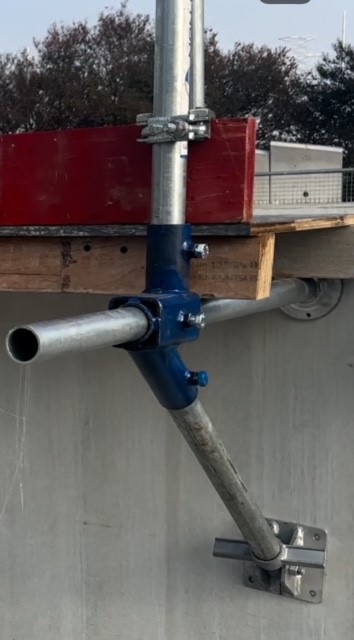

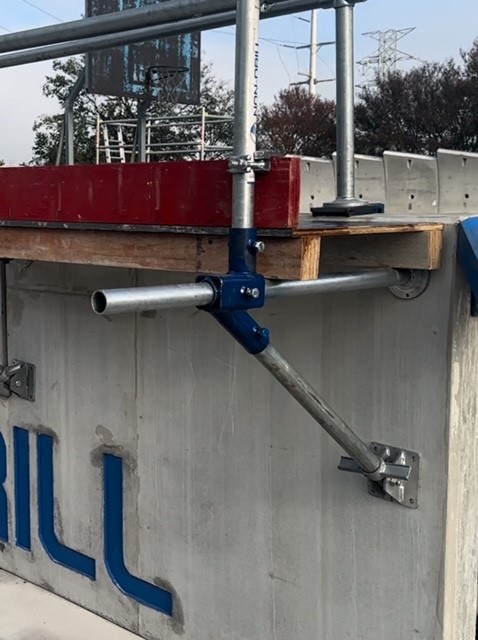

NON-DRILL Walkway BracketNON-DRILL Walkway Adaptor is an innovative system, used in conjunction with standard NON-DRILL Posts to create a cantilevered walkway along the side of a pier or headstock. It connects to Cone Anchors or Ferrules placed on the side of Precast structures, eliminating the substantial costs of drilling and fixings. The system is 225kg rated and complies with AS 1657:2018 Australian Standards.
- Using standard NON-DRILL components, create cantilevered walkways.
- Outside Handrail height up to 1000mmH.
- Adjustable Post/Brace bracket to create walkways up to 800mm wide.
- Minimum concrete MPa to be 32 Mpa.
- Anchor options: 2.5t/5t (one anchor, M16/M20 ferrules).
- Applications: Precast walls, Retaining Walls, and Capping beams.
- Complies with AS 1657:2018
NSNs: TSSd
NON-DRILL Walkway Adaptor is an innovative system, used in conjunction with standard NON-DRILL Posts to create a cantilevered walkway along the side of a pier or headstock. It connects to Cone Anchors or Ferrules placed on the side of Precast structures, eliminating the substantial costs of drilling and fixings. The system is 225kg rated and complies with AS 1657:2018 Australian Standards.
