Inside Western Sydney Airport: How CPB/Acciona and SafeSmart Access Are Building the Future of Aviation Infrastructure
Western Sydney is gearing up for a significant leap in aviation with the ongoing construction of the Western Sydney International (Nancy-Bird Walton) Airport (WSIA). This project has attracted significant attention in the world of infrastructure. At the heart of this ambitious endeavour is a joint venture between CPB/Acciona, industry giants renowned for their infrastructure expertise. They recently clinched a highly coveted contract to execute the airside civil and pavement works, a critical phase that will shape the very foundation of airport operations.
This contract is no small feat—it encompasses the construction of essential elements like taxiways, runways, and aircraft pavements alongside specialised systems such as aeronautical ground lighting and airside roads. The scope and complexity of the project necessitate cutting-edge solutions to meet the stringent demands of safety, efficiency, and regulatory compliance. Enter SafeSmart Access, the company tasked with delivering a vital component of this intricate puzzle: a specialised bridge system tailored to the unique needs of the WSIA project.
The Challenge: Scoping a Complex Infrastructure Need

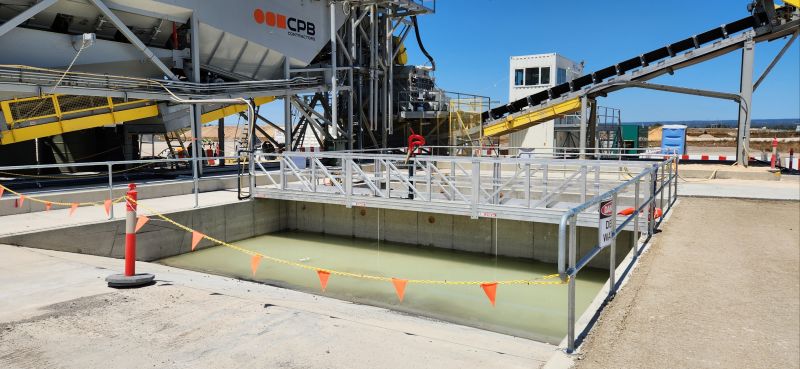

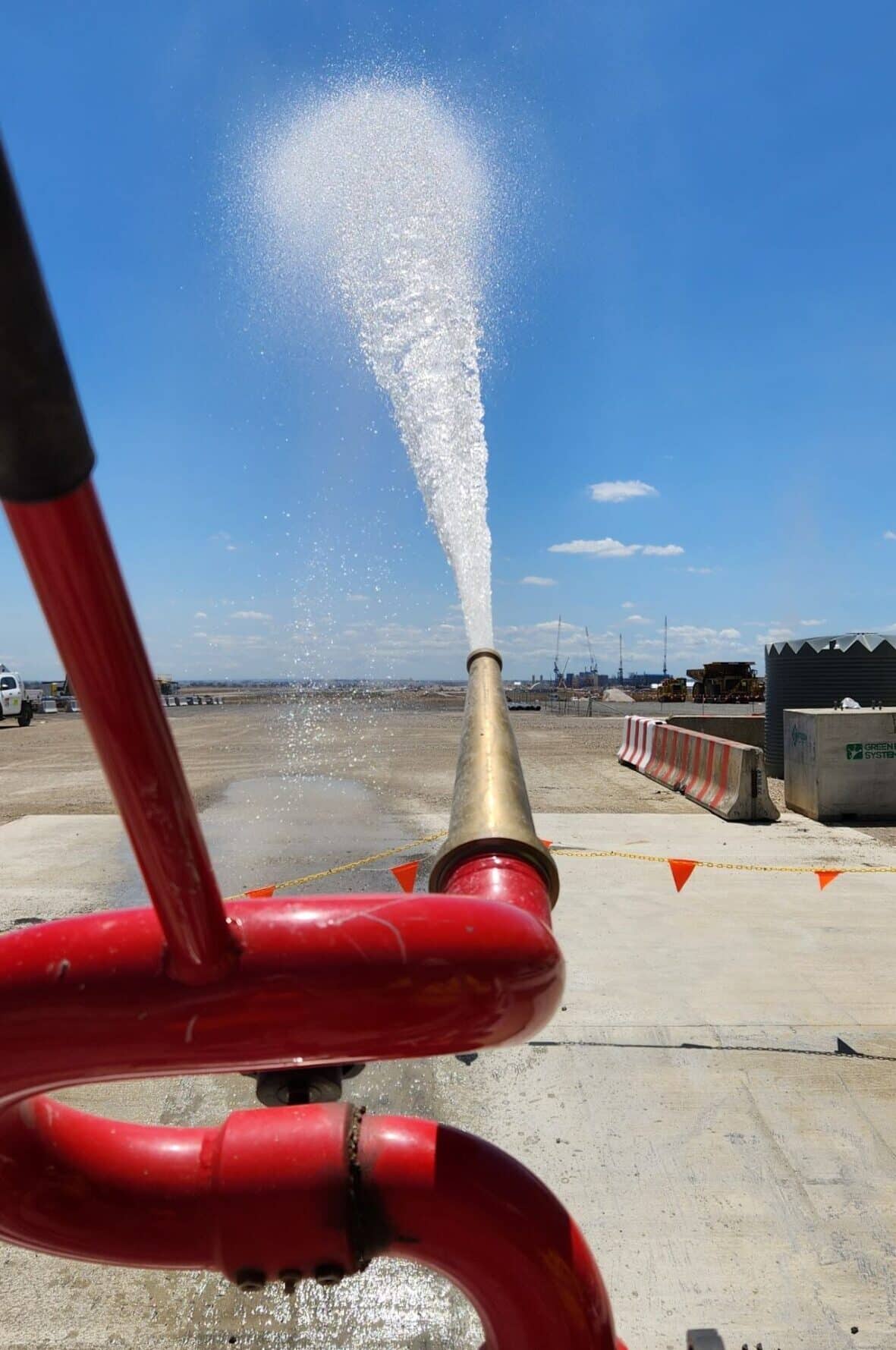

Every major infrastructure project begins with a rigorous scoping phase, and WSIA was no exception. CPB/Acciona identified a critical need for a specialised bridge spanning a water catchment area. This bridge had to support the installation of a high-pressure hose for truck clean-out facilities while ensuring clear access for front-end loaders to remove silt. This dual requirement presented significant engineering challenges.
CPB/Acciona needed a solution that could withstand the operational’ kickback’ from the hose while being robust enough to handle the site’s environmental conditions and operational demands. The scoping phase was crucial in defining these requirements and setting the stage for the following innovative solution.
The Solution: Adaptaspan
Recognising the project’s unique challenges, CPB/Acciona turned to SafeSmart Access. Our response was swift and strategic; their engineering team conducted an on-site assessment within hours, identifying the AdaptaSpan Modular Bridge system as the optimal solution.

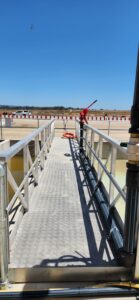

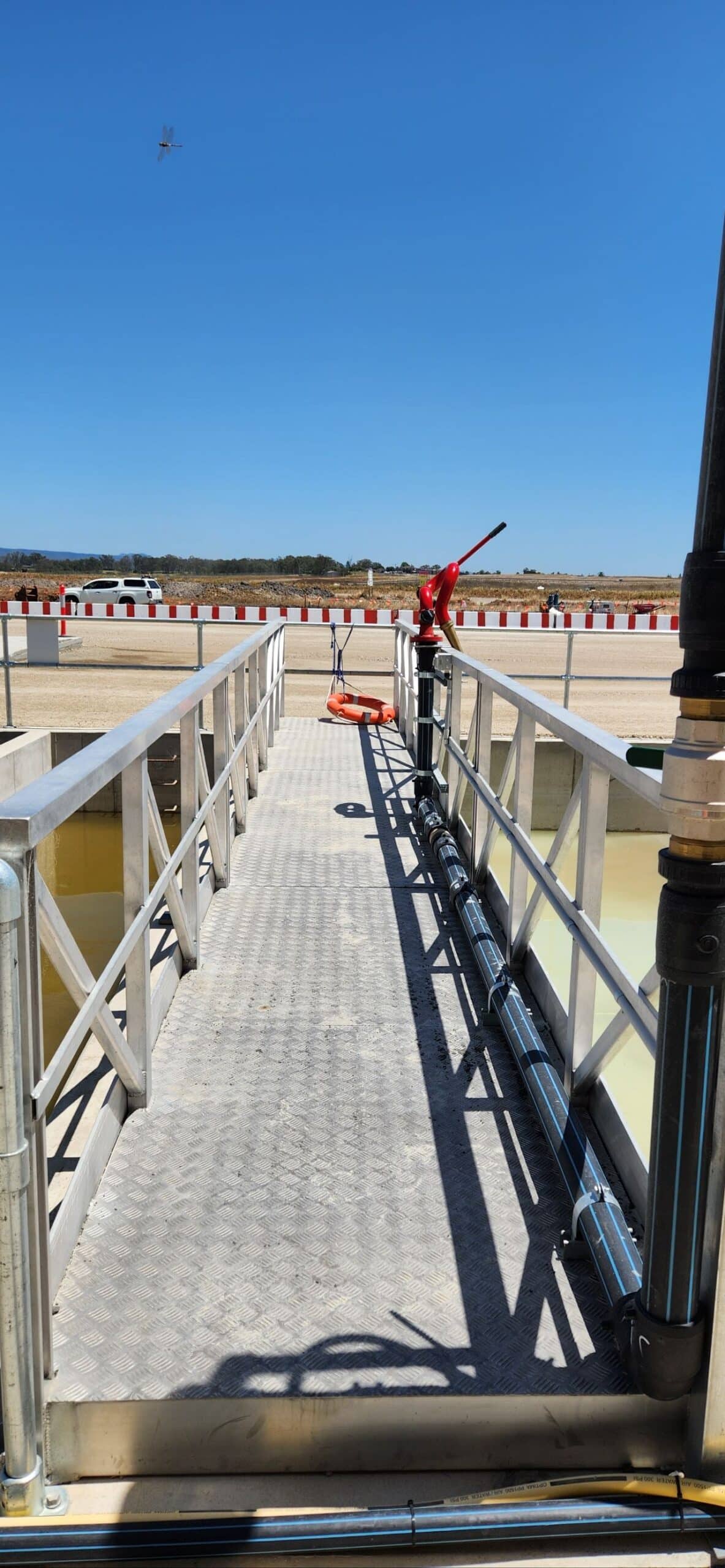

AdaptaSpan is no ordinary briIt’s a modular, lightweight system designed to clear span the catchment area without the need for intrusive support props. This essential feature allows for uninterrupted silt removal beneath the bridge. Despite its relatively light weight of around 500kg, AdaptaSpan boasts an impressive load-bearing capacity of up to 2.5kPA SWL, making it more than capable of supporting high-pressure hose installation.
From Concept to Reality: The Proposal and Delivery

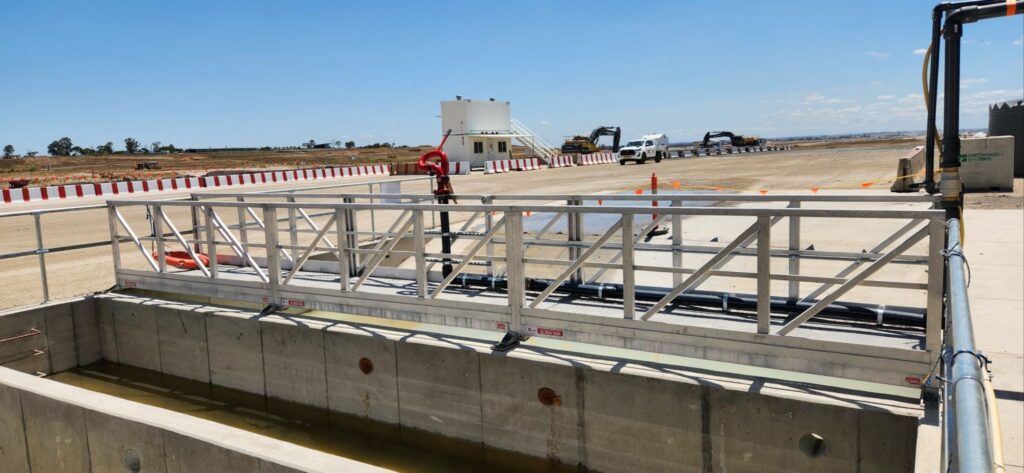

With the solution identified, SafeSmart Access quickly moved to the next phase: developing a detailed product and commercial proposal. This plan outlined the construction of the AdaptaSpan bridge using three 3-meter modules to achieve a total span of 9 meters. The modular design was easy to assemble and flexible enough to adapt to the site’s specific needs, all while adhering to stringent safety and engineering standards, including AS/NZS 1657:2018 and AS/NZ 1866.
Once the proposal was approved, SafeSmart Access demonstrated remarkable efficiency in delivering the solution. The AdaptaSpan bridges were manufactured and transported to the site, allowing for rapid installation with minimal disruption to ongoing construction activities. The AdaptaSpan system’s modularity proved invaluable, enabling quick assembly and integration into the project.
Sustaining Success: Through-Life Support and Beyond
But SafeSmart’s commitment didn’t end with the installation. The company has pledged ongoing support throughout the AdaptaSpan bridge’s lifecycle, including regular safety inspections, maintenance, and potential reconfigurations to adapt to evolving site conditions. This through-life support ensures that the bridge remains safe, functional, and compliant with all necessary regulations, aligning with best practices for long-term infrastructure reliability.
The collaboration between CPB/Acciona and SafeSmart Access on the WSIA project exemplifies how innovative engineering solutions can meet the rigorous demands of modern infrastructure projects. The AdaptaSpan Modular Bridge is a testament to the power of specialized design in enhancing operational efficiency and safety, ensuring that the Western Sydney International Airport will be ready to meet future needs.
For a closer look at SafeSAccess’sess’s innovative solutions in ramps, walkways, and bridges, see our category and product pages for more detail.
