The Premium Modular Edge Protection Fencing System
AdaptaPanel FC Series
The Premium Modular Edge Protection Fencing System
AdaptaPanel FC Series- Edge protection panels with removable mesh panels and tileboards, with direct installation to a post set within 300mm of the slab edge.

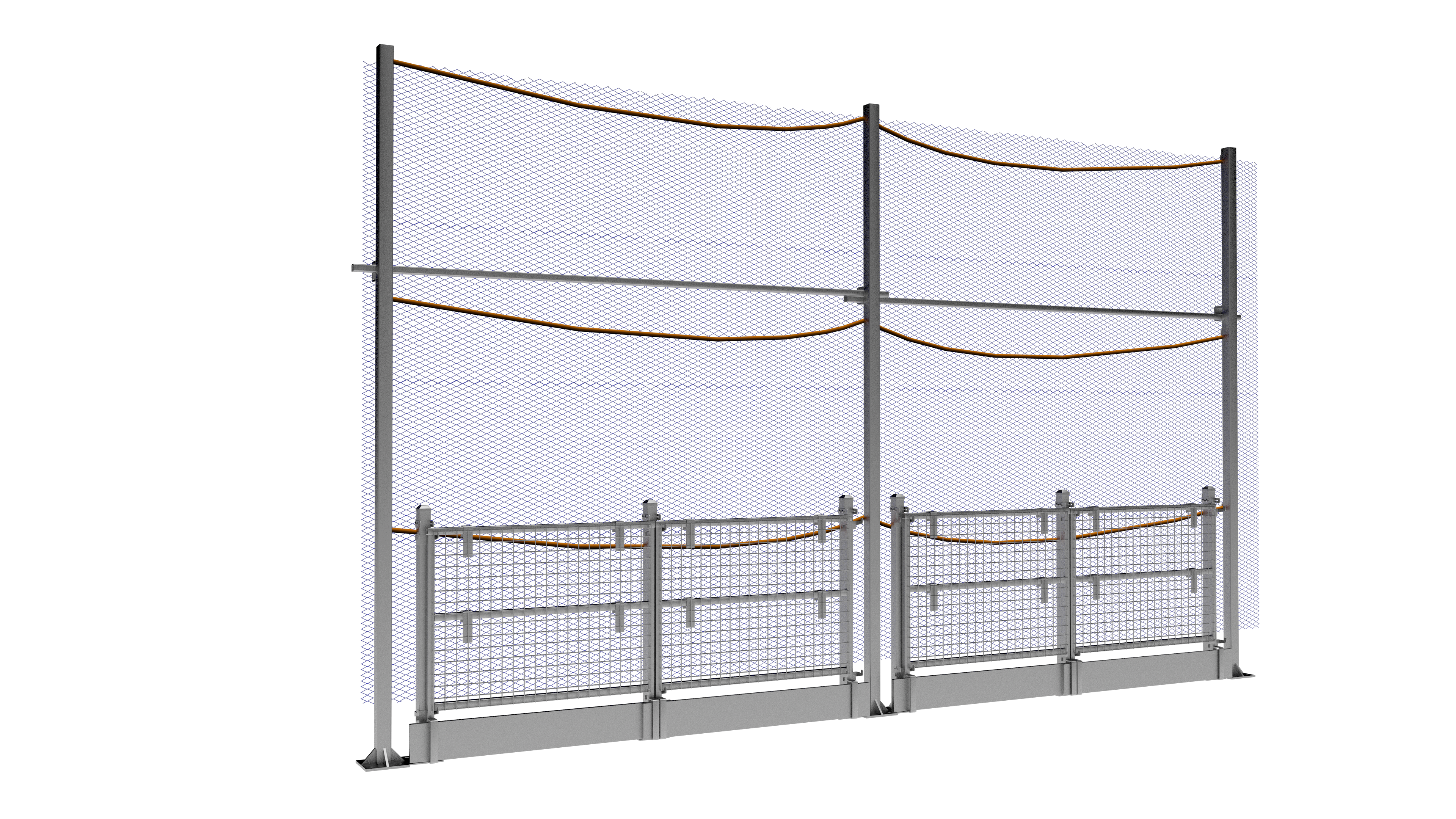

- Debris netting support posts 3m high with 20x20mm debris netting attached to the posts. The 3.0m high posts are bolted to the slab at approx. 0.5m back from the edge protection panels.
- All posts are interconnected at approx. 2m above ground.
- Optional coated finishes include galvanised and several powder coat colours for brand identification.
- Sliding safety latches retain mesh panels preventing unintentional lift-off.
- Available in multiple post heights: 1.0mH, 1.5mH, 2.0mH, and 3.0mH.
- The 1.0mH & 2.0mH panels are ideal for high rise construction and to assist with pez (perimeter exclusion zone).
- Panels may be stacked in stillages for easy storage and transport. Designed to meet relevant design and load requirements of AS4994.1:2009 “Temporary edge protection” standard and AS1657:2018.
SKU: ADPTPNLFC
AdaptaPanel Edge Protection Work Through Series - Panel 1.0mH x 1.0mL
- AdaptaPanel Edge Protection Work Through Series - Panel 1.0mH x 1.0mL
SKU: ADPTPNLFC
AdaptaPanel Edge Protection Work Through Series - Panel 1.0mH x 2.0mL
- AdaptaPanel Edge Protection Work Through Series - Panel 1.0mH x 2.0mL
SKU: ADPTPNLFC
AdaptaPanel Edge Protection Work Through Series - Toeboard 1.2mL
- AdaptaPanel Edge Protection Work Through Series - Toeboard 1.2mL
SKU: ADPTPNLFC
AdaptaPanel Edge Protection Work Through Series - Toeboard 2.2mL
- AdaptaPanel Edge Protection Work Through Series - Toeboard 2.2mL
SKU: ADPTPNLFC
AdaptaPanel Edge Protection Work Through Series - Toeboard 3.2mL
- AdaptaPanel Edge Protection Work Through Series - Toeboard 3.2mL
SKU: ADPTPNLFC
AdaptaPanel Edge Protection Work Through Series - Mesh 1.0mH x 1.0mL
- AdaptaPanel Edge Protection Work Through Series - Mesh 1.0mH x 1.0mL
SKU: ADPTPNLFC
AdaptaPanel Edge Protection Work Through Series - Mesh 1.0mH x 2.0mL
- AdaptaPanel Edge Protection Work Through Series - Mesh 1.0mH x 2.0mL
The SafeSmart AdaptaPanel is now available in a fully modular design.

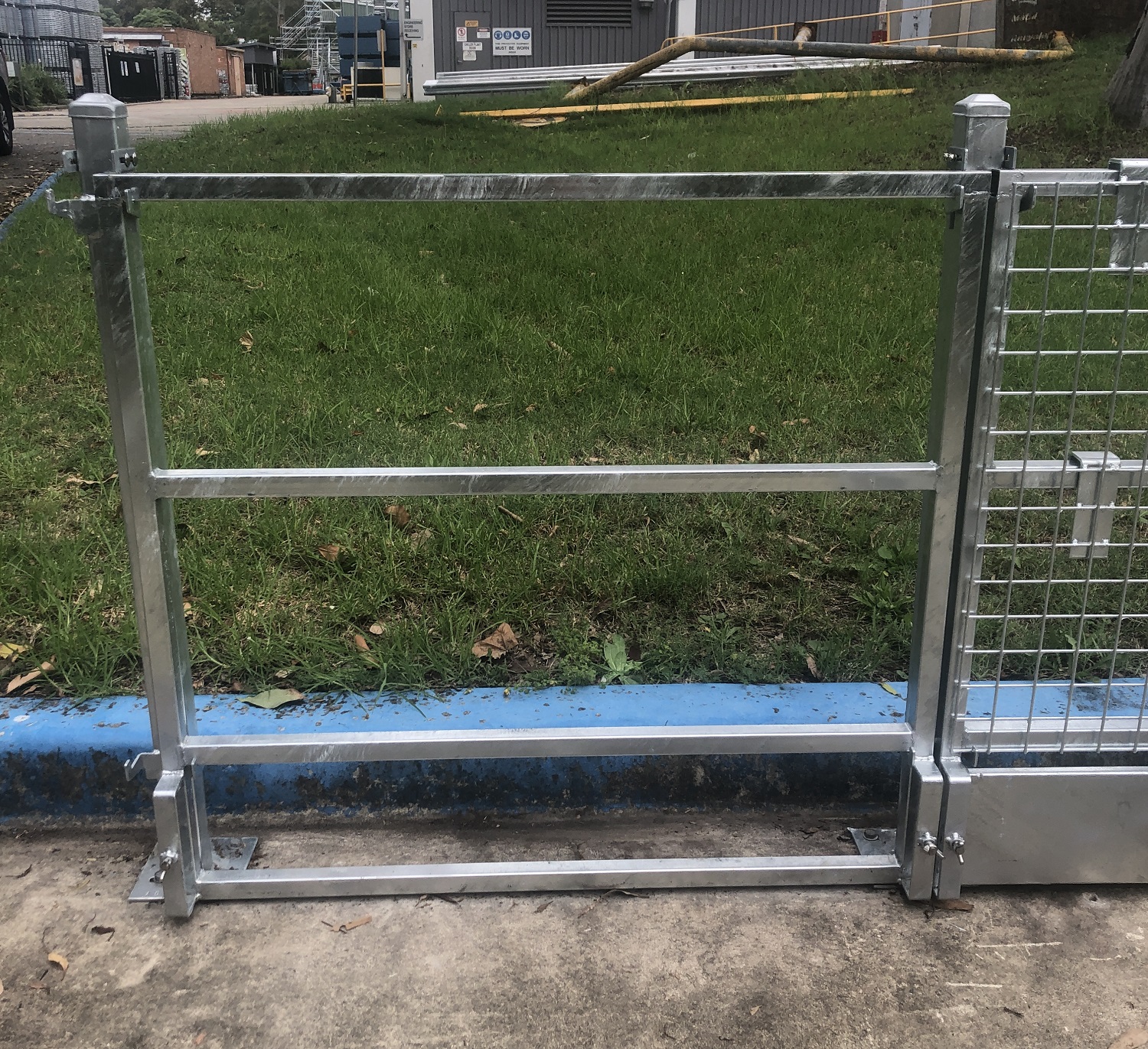

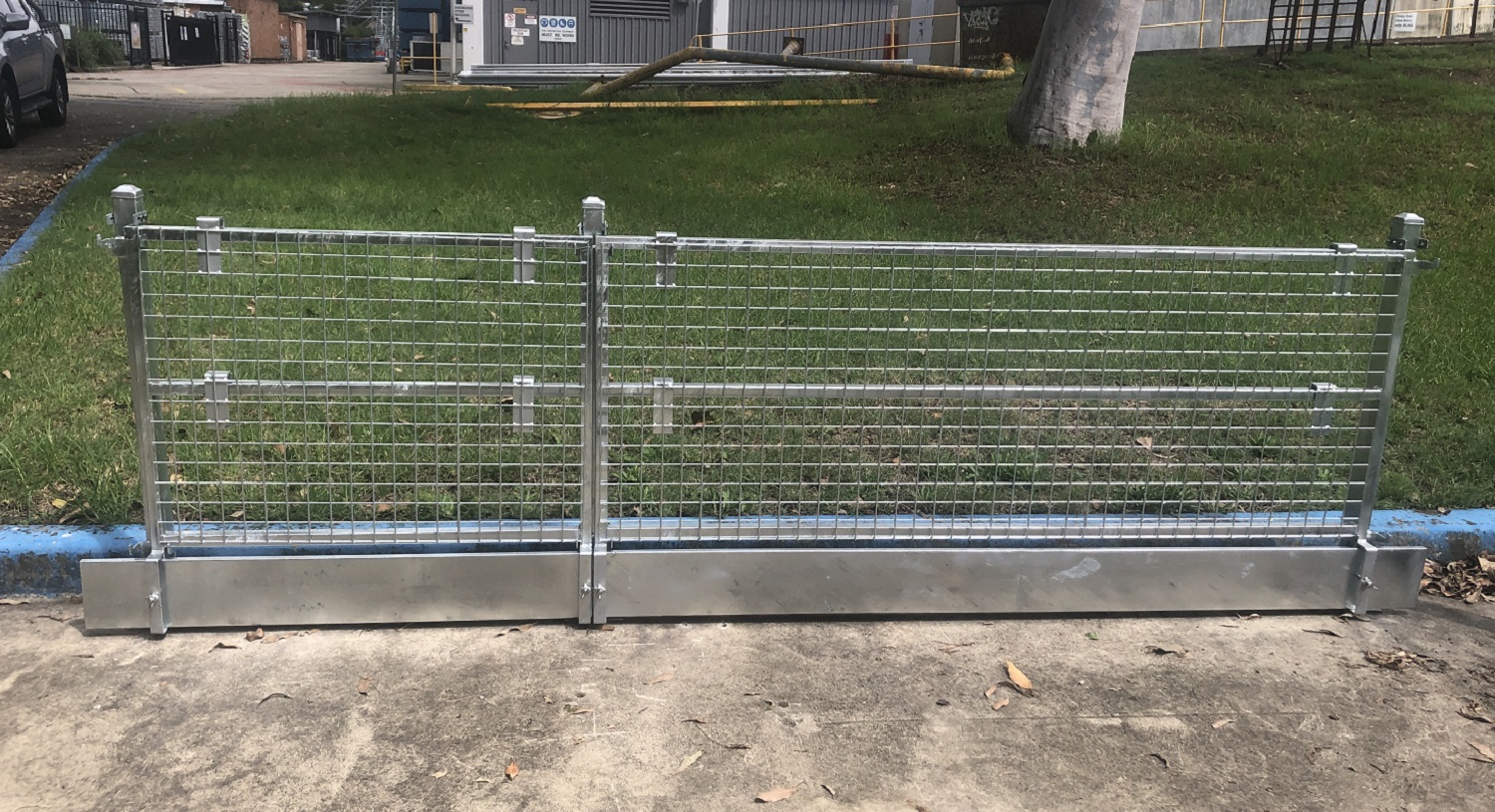

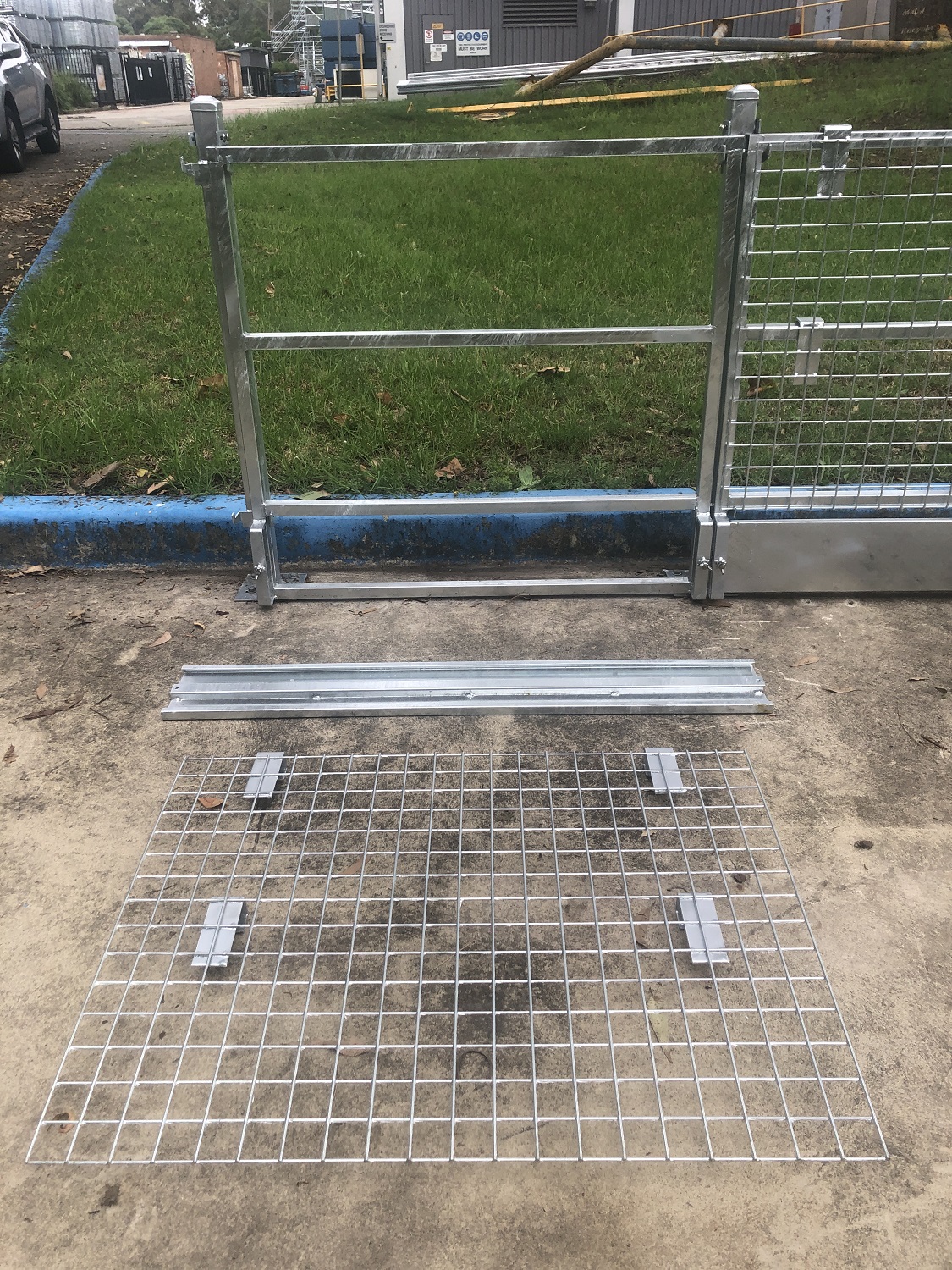

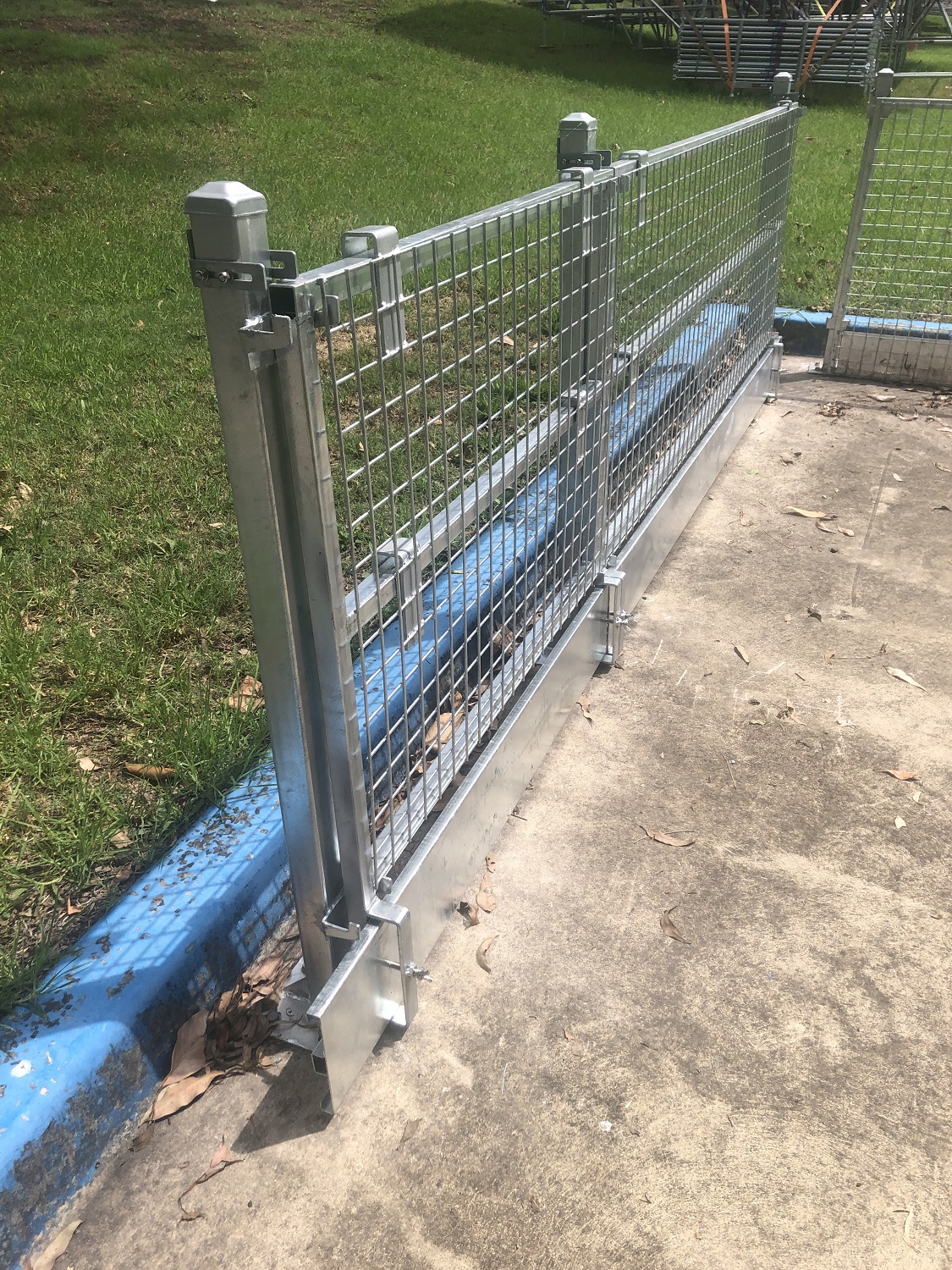

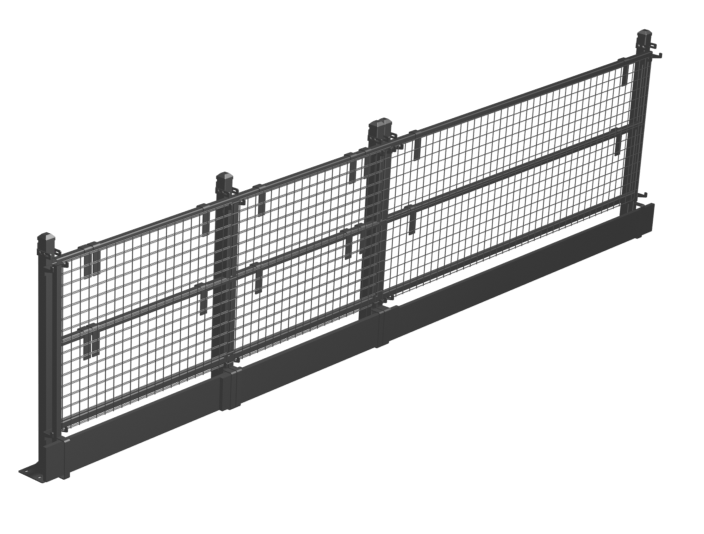

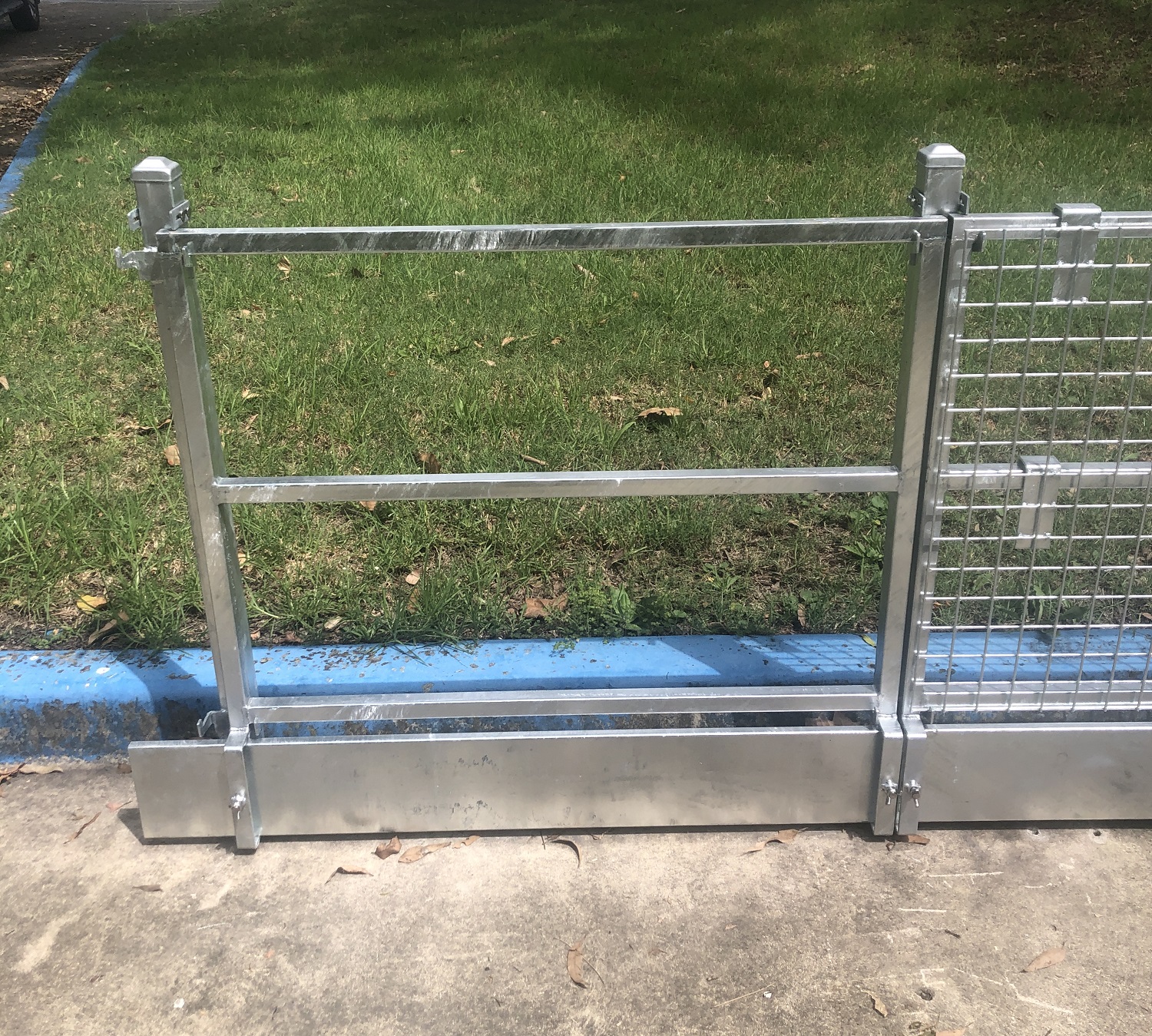

The AdaptaPanel Work Through Series features removable mesh panels and toeboards, with a direct installation to a post set within 300mm of the slab edge.
All posts are interconnected approximately 2m above ground, and sliding safety latches retain mesh panels preventing unintentional lift-off.
Complies with AS/NZS 1657: 2018, even with its modular design there’s no compromise on the robust and reliable build that AdaptaPanel is renowned for.
- Optional coated finishes include galvanised and several powder coat colours for brand identification.
- Available in multiple post heights: 1.0m, 1.5m, 2.0m & 3.0mH.
- Stack panels in stillages for ease of transport and storage.
