Chassis Access Platform for Mining Haul Truck Maintenance
Mining Haul Truck Chassis Access PlatformChassis Access Platform for Mining Haul Truck Maintenance
Mining Haul Truck Chassis Access Platform- Mobile platform featuring a selection between 200mm and 260mm castors
- Raised and swaged perforated decking for slip-resistance
- Cantilevered section for unhindered access over hydraulic boxes or fuel tanks
- Self-closing and locking swing gates for secure edge protection
- Equipped with heavy-duty machine jacks for precise leveling
- Task-specific stair access platform designed for maintenance on haul truck chassis
- Enables direct chassis entry without the need for traversing hydraulic or fuel areas
- Optional storage deck for housing chassis guardrails
- Adaptable design suitable for large haul trucks, including CAT and Komatsu models
The Chassis Access Platform provides a task-specific and stable solution for maintenance access to haul truck chassis areas, ensuring safety and efficiency.

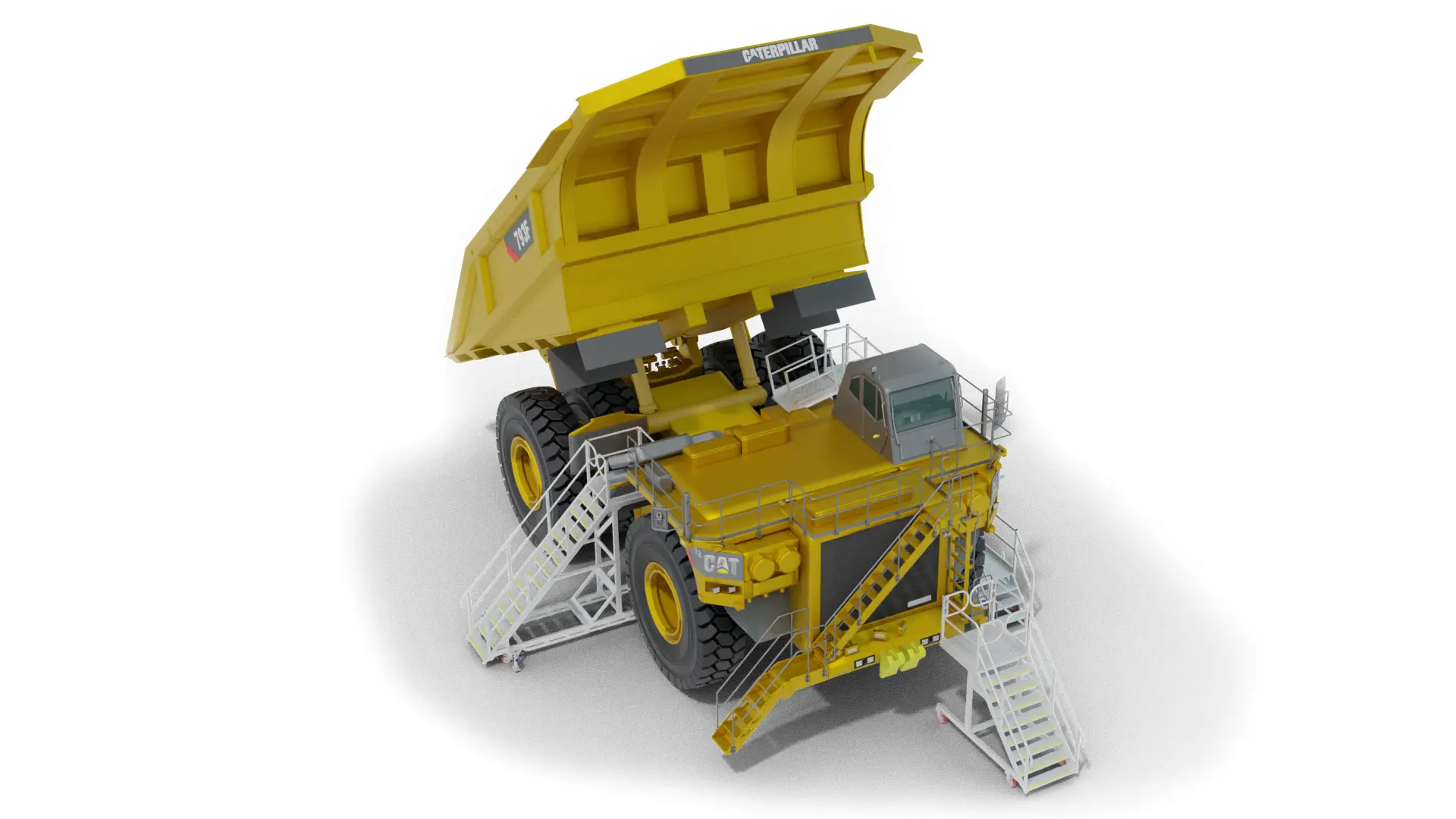

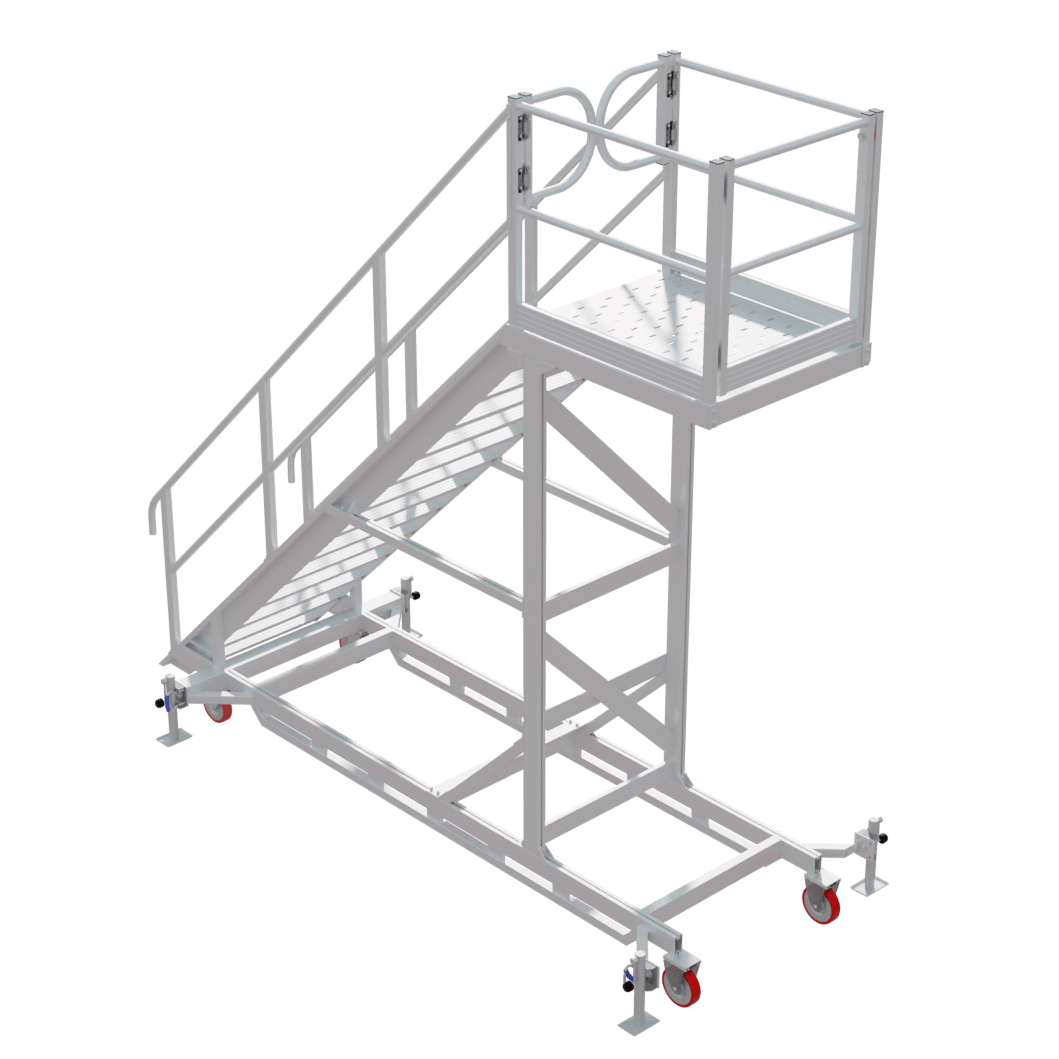

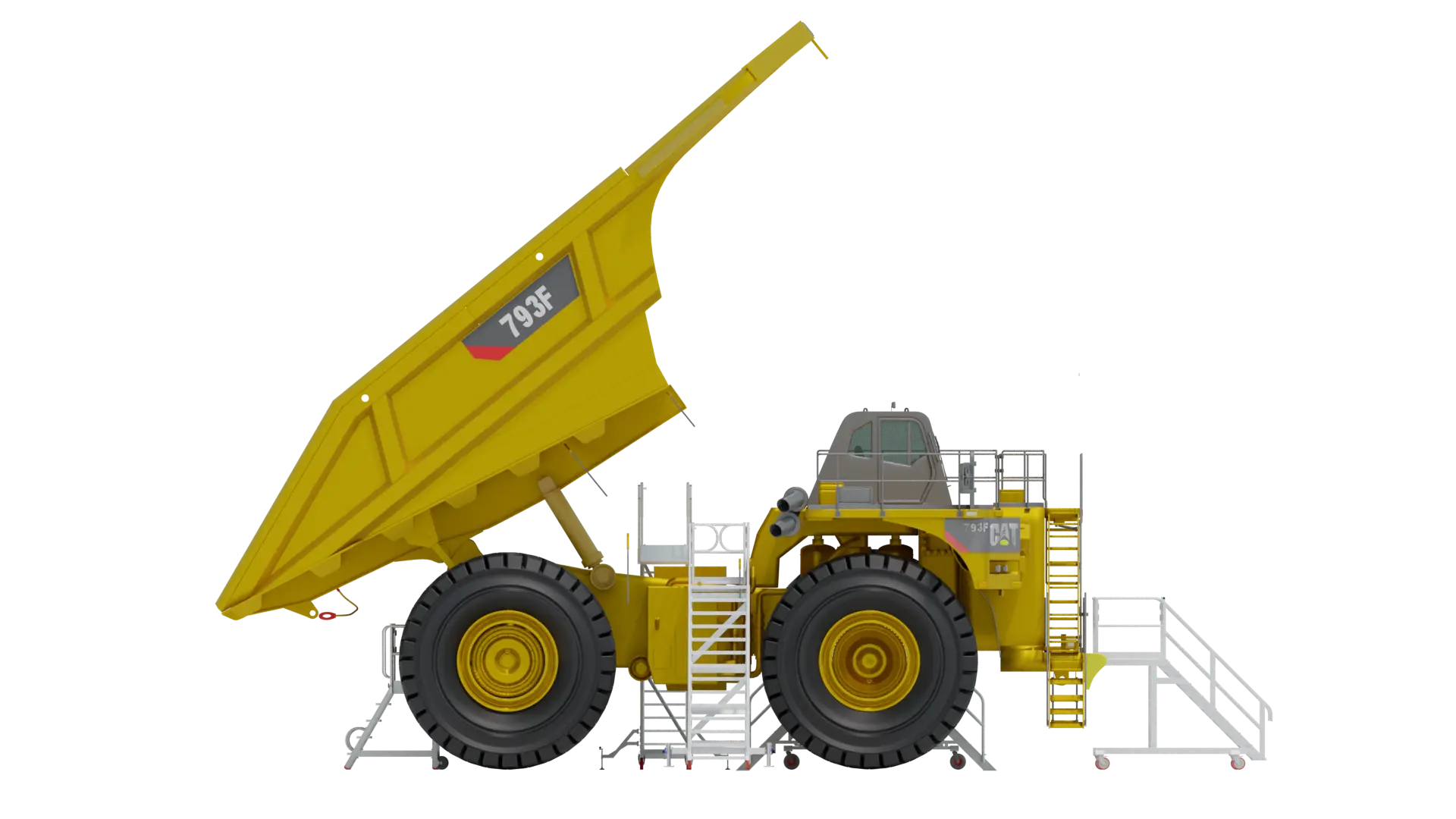

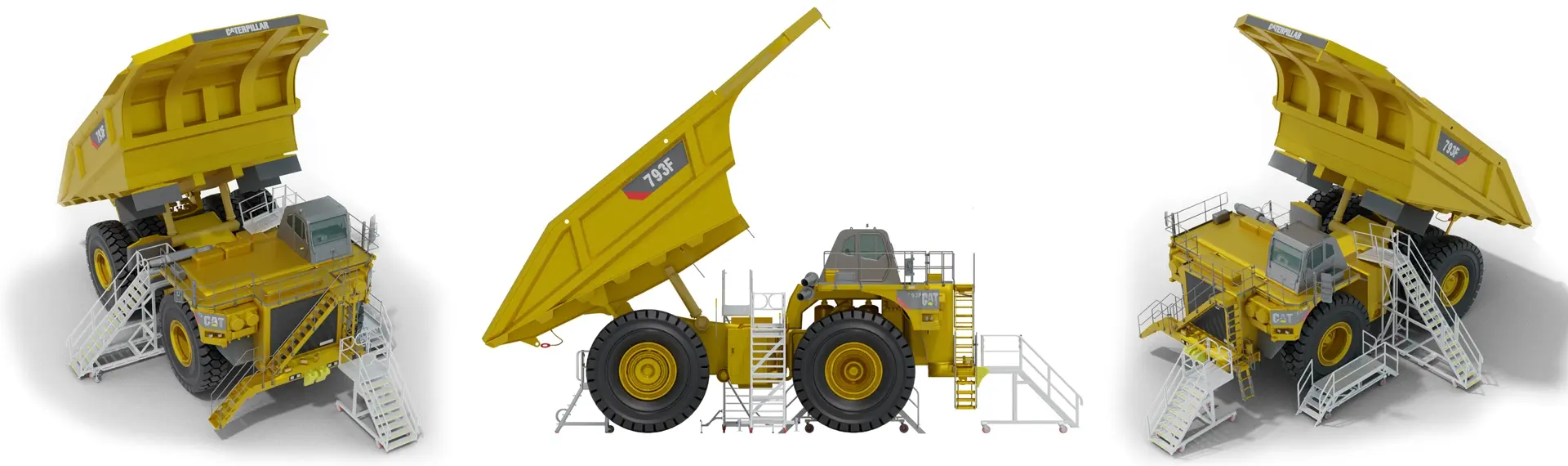

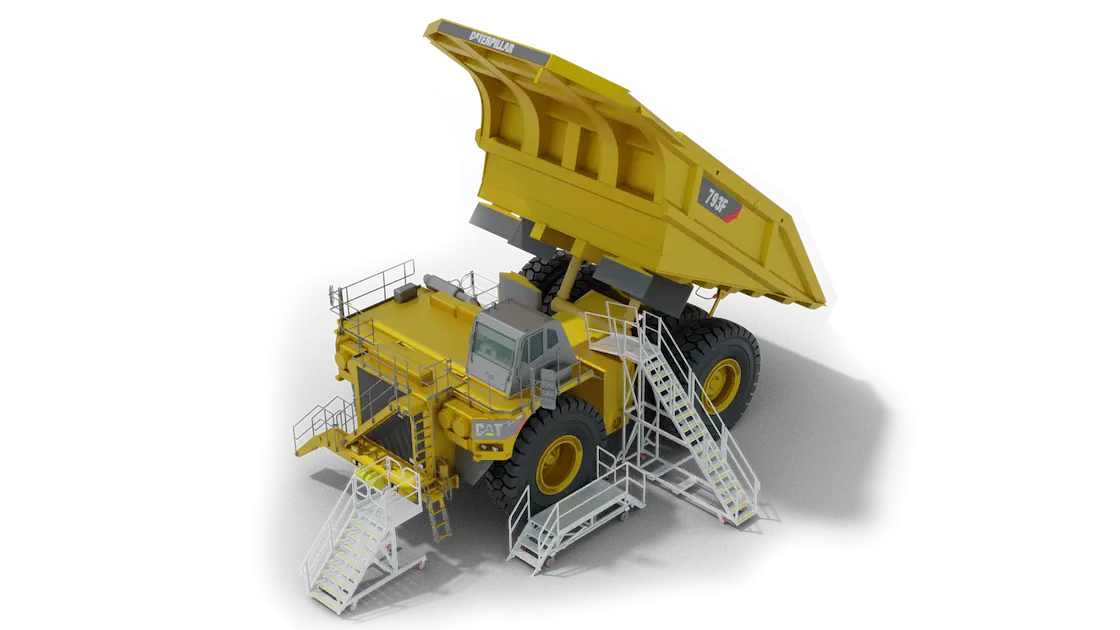

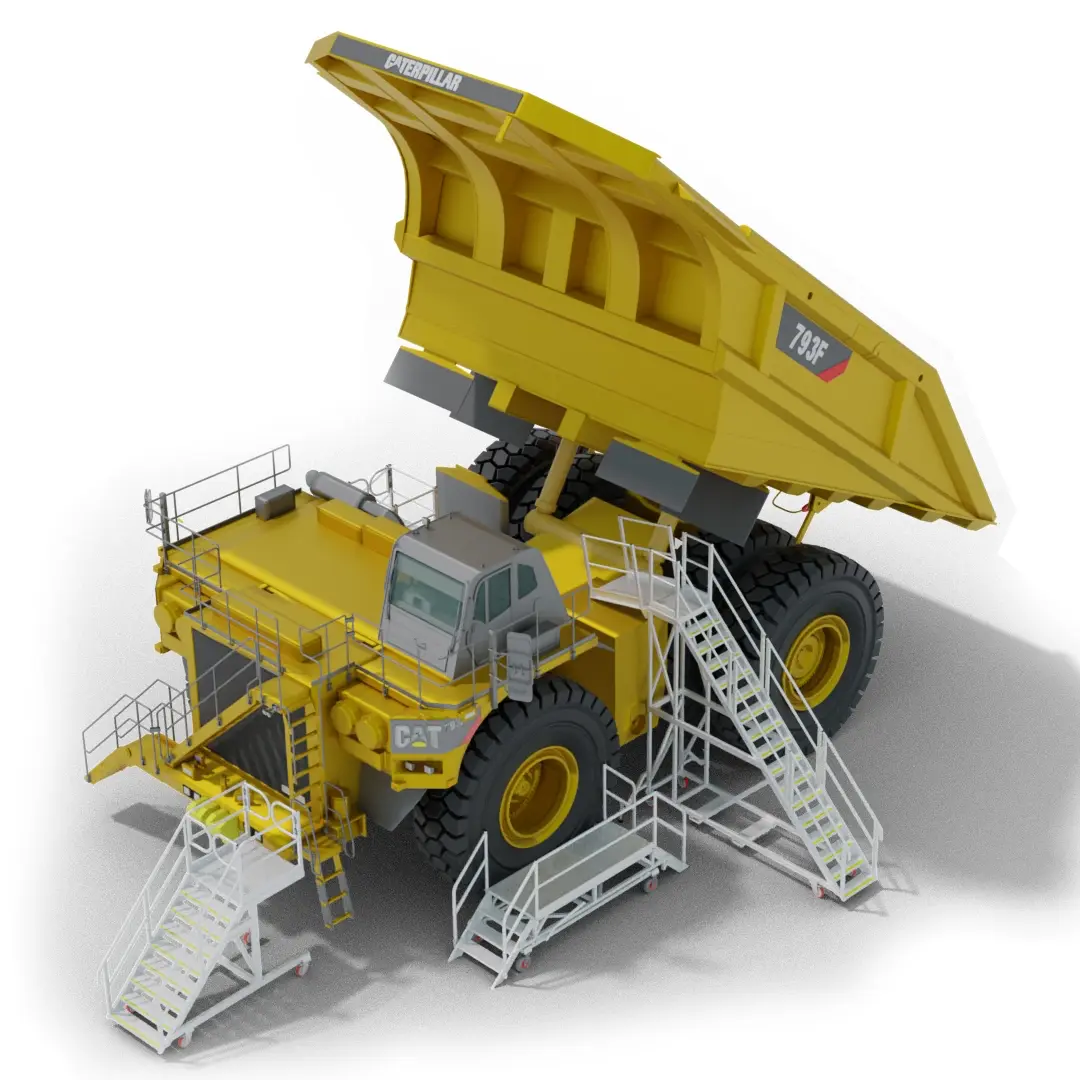

The Chassis Access platform is a task-specific, stair access platform for access to the chassis area of haul trucks for maintenance works. This platform is mobile on either 200mm or 260mm castors and has raised and swaged perforated decking for maximum grip in wet and slippery conditions. The platform design includes a cantilevered section, allowing for access over either the hydraulic box or the fuel tank. This removes the need for the user to walk across the hydraulic box or fuel tank and gives direct access into the chassis.
The platform can also be adapted to have the cantilever off the side of the platform to reduce the space taken up in the workshop bay for use in tighter areas where space is a luxury! For access onto the platform, there are self-closing gates, with a locking swing gate for access off the platform. This gives the user full surround edge protection whilst on the deck. Fitted to the platform are 4x heavy-duty machine jacks for levelling and added stability when setting up the platform in the bay.
Safety and Efficiency
The platform’s 250kg SWL rating confirms its capability to support workers and their tools on a large, stable deck. The unique cantilevered feature allows for precise positioning over a vehicle’s hydraulic box or fuel tank, providing direct chassis connectivity and eliminating unsafe crossing over these areas. Safety is further enhanced with full surround edge protection via self-closing gates and a secure locking swing gate for deck entry and exit.
Usage Scenarios
- Essential maintenance work on popular haul truck models like CAT 793, 789, 797, and Komatsu 830e and 930e.
- Scenarios are needing reliable, level, and sturdy platforms in potentially wet workshop environments.
- Applications that require customisable access solutions to optimise space in restricted areas.
SafeSmart Access’s Chassis Access Platform is proof of dedication to advancing safety and operational efficiency in the mining sector. The customisable and thoughtfully engineered platform is not just an access solution; it’s a commitment to worker safety and productivity across various heavy vehicle maintenance scenarios.
