Haul Truck Adjustable Height Tray Access Platform

Custom Adjustable Height Tray Access Platform

Haul Truck Adjustable Height Tray Access Platform

Custom Adjustable Height Tray Access Platform
  • Eliminates the need for scaffolding setup for each task, significantly reducing downtime
  • Adjustable height from 4.35m to 5.75m to accommodate various truck models
  • Telescopic Edge Protection Wings that extend up to 9.4mW overall
  • Equipped with 45-degree stair access for the safe transport of tools and equipment
  • Four machine jacks installed for solid stability during use
  • Height adjustable via manual winch for ergonomic working heights
  • Fork tyre pockets included for easy repositioning
SKU: HTAHTAP
Mining Platform
  • Adjustable height from 4.35m to 5.75m
  • Telescopic Edge Protection Wings
  • 45-degree stairs

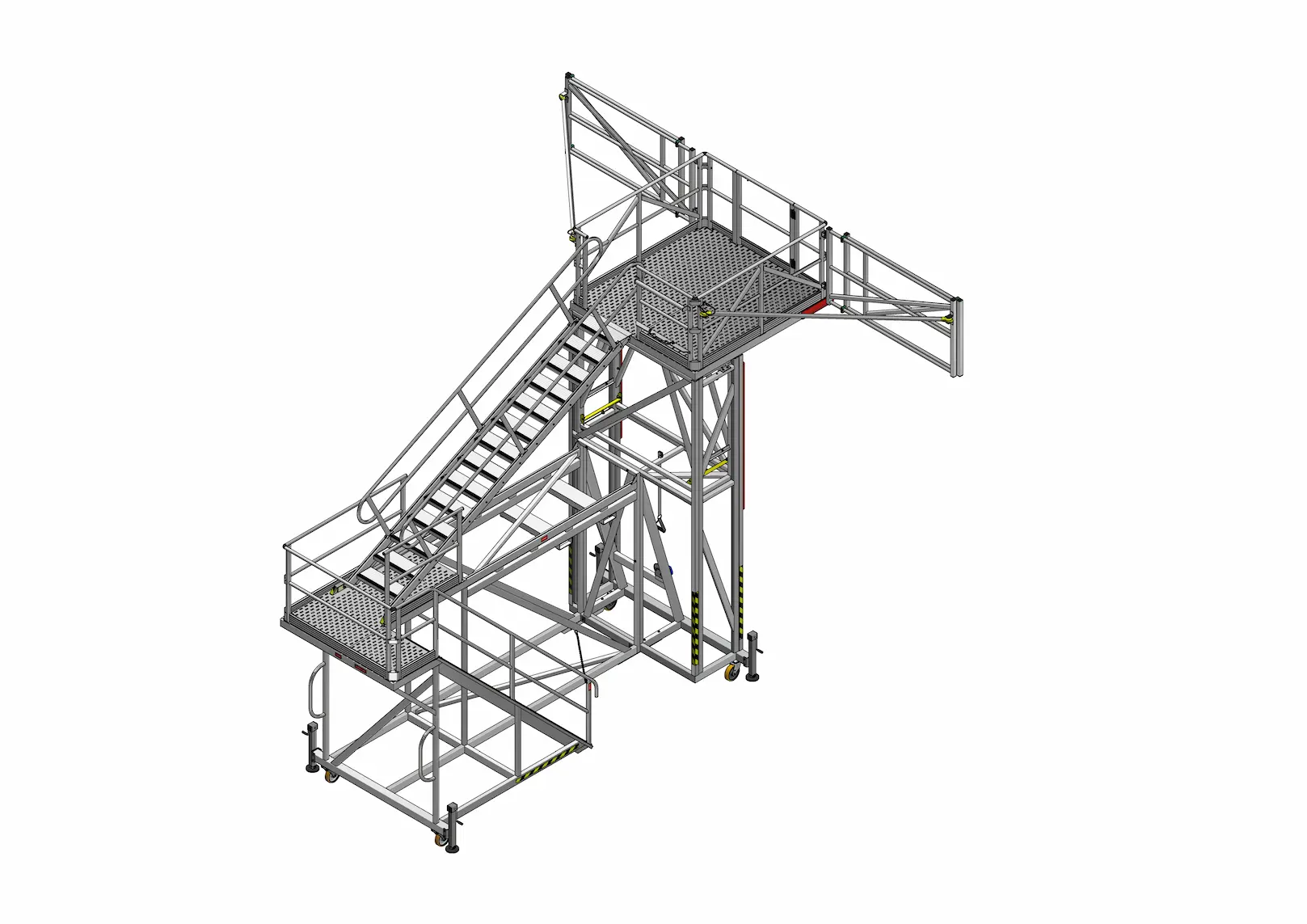

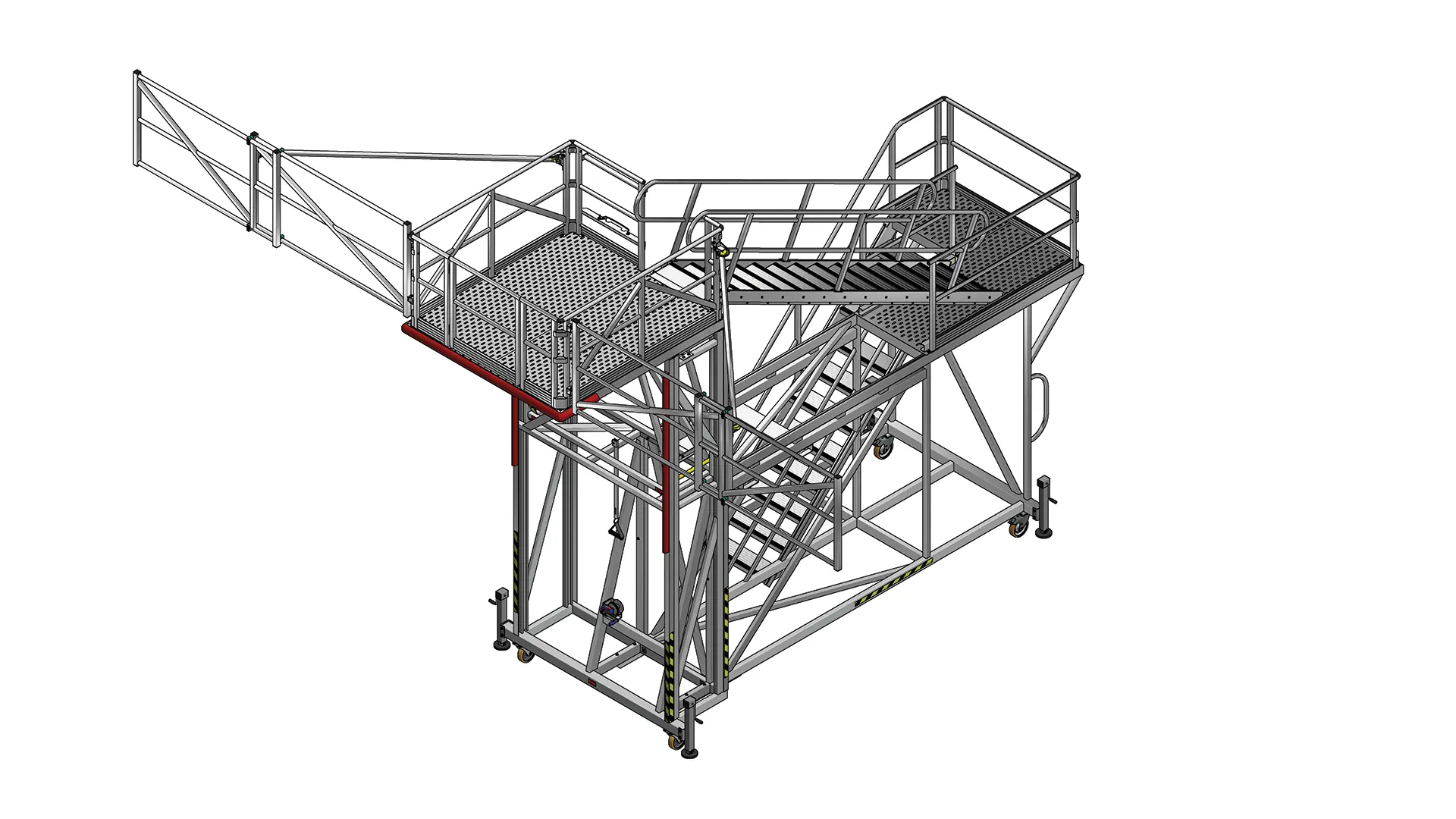

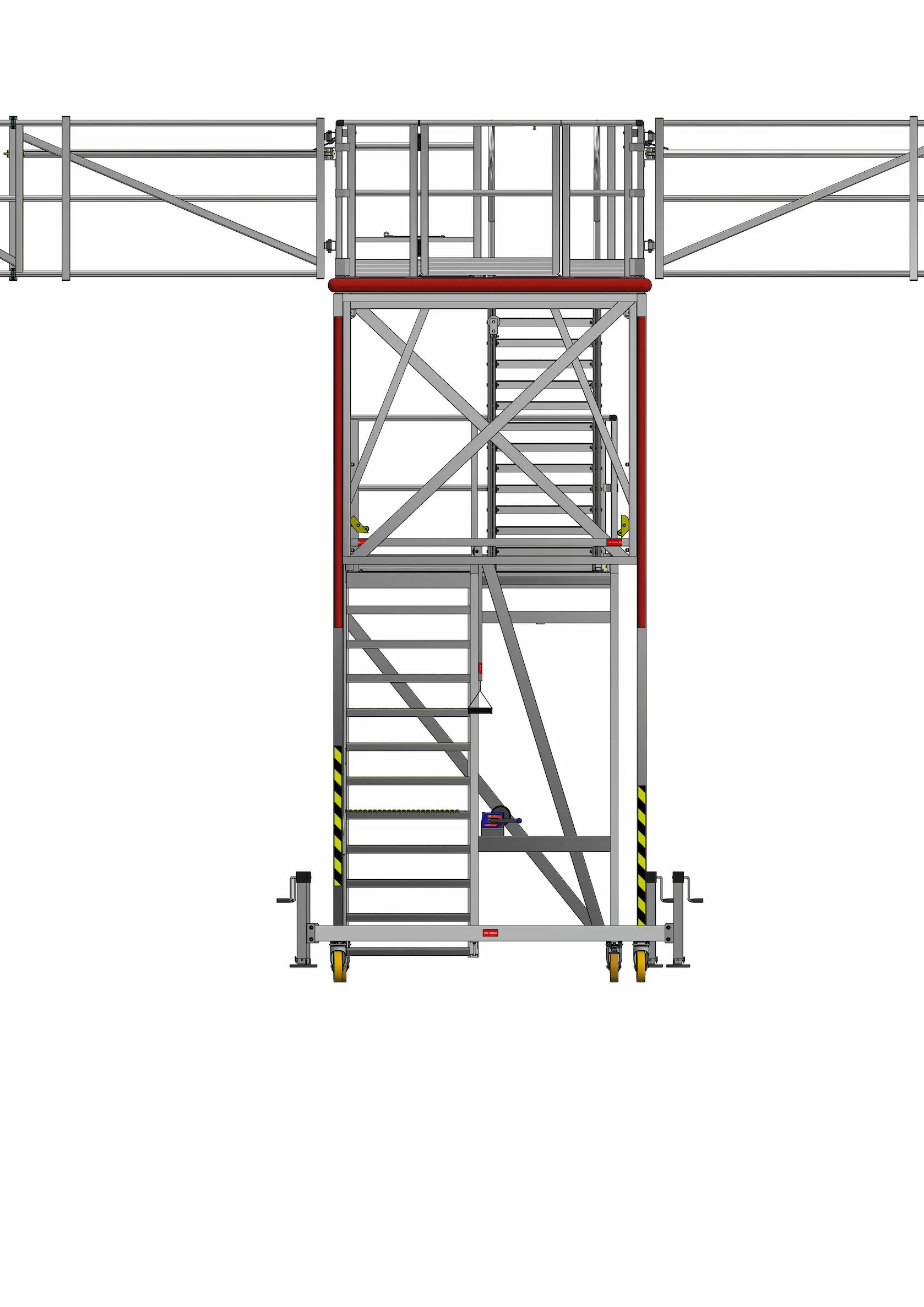

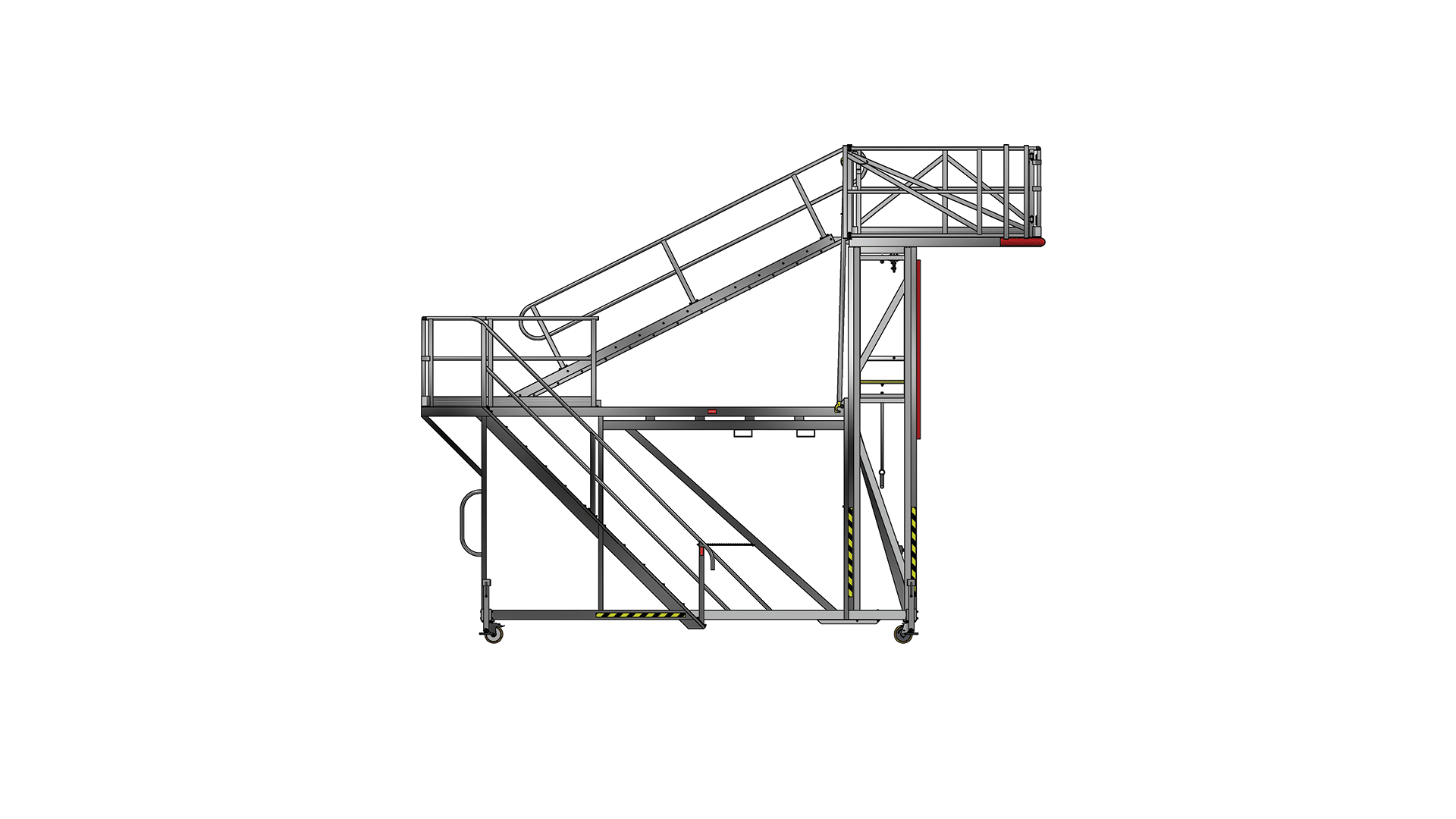

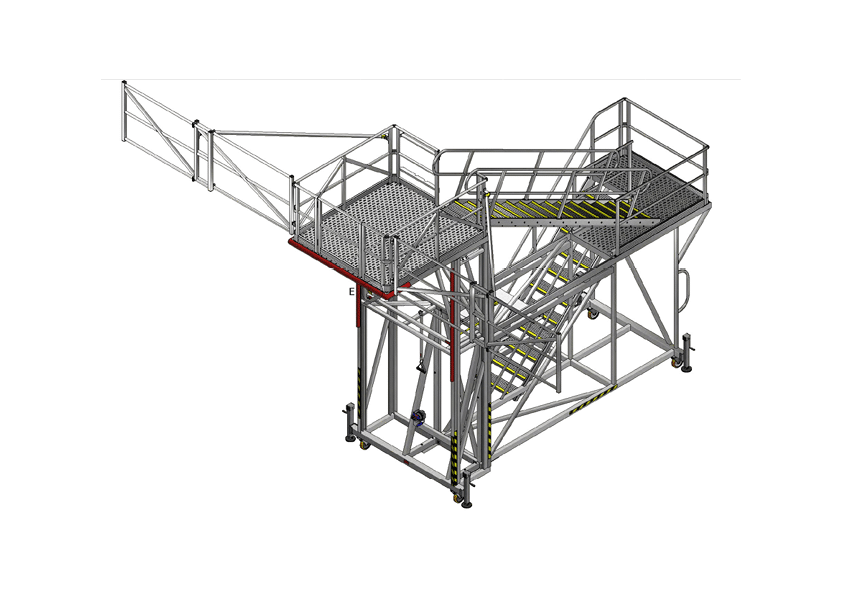

  • The Custom Adjustable Height Tray Access Platform by SafeSmart Access is engineered to provide a comprehensive and safe working space for the maintenance and fabrication of haul truck trays. Specially designed to fit truck models like the CAT 793 F, C, and D series, CAT 789 D, CAT 785 D, Komatsu 830e and 930e, and more, its adaptability is one of its greatest strengths.

    A manual winch controls the platform’s height adjustment, allowing for increments that ensure optimal alignment with truck bodies. The integration of telescopic edge protection wings, along with 45-degree stair access, improves safety and convenience when carrying out maintenance tasks. The inclusion of four machine jacks affirms its stability, providing unwavering support for workers and their equipment. Castors facilitate the platform’s mobility, enabling swift and straightforward repositioning within the workspace.

    Safety and Efficiency

    With safety at its core, the Custom Adjustable Height Tray Access Platform comes furnished with features designed to protect personnel and equipment. The manual winching system is fully enclosed to enhance safety during height adjustments. The telescopic handrails and foam buffers ensure protection against falls and head strikes, respectively. By expediting the setup process, it diminishes downtime, allowing maintenance teams to focus on high-priority tasks with enhanced productivity.

    Usage Scenarios

    • Mining Operations: Allows safe and efficient access to the back of haul truck trays for maintenance, fabrication works, and re-lining.
    • Construction Sites: Suitable for major repair works on heavy-duty trucks used for construction material transport.
    • Industrial Workshops: Facilitates adaptability and reuse for a wide range of heavy vehicle maintenance and repairs.

    This Adjustable Height Tray Access Platform by SafeSmart Access is a standout solution, significantly reducing the time and resources typically required for haul truck tray access. Its design assures that safety and efficacy are prioritized, meeting the complex demands of heavy vehicle maintenance

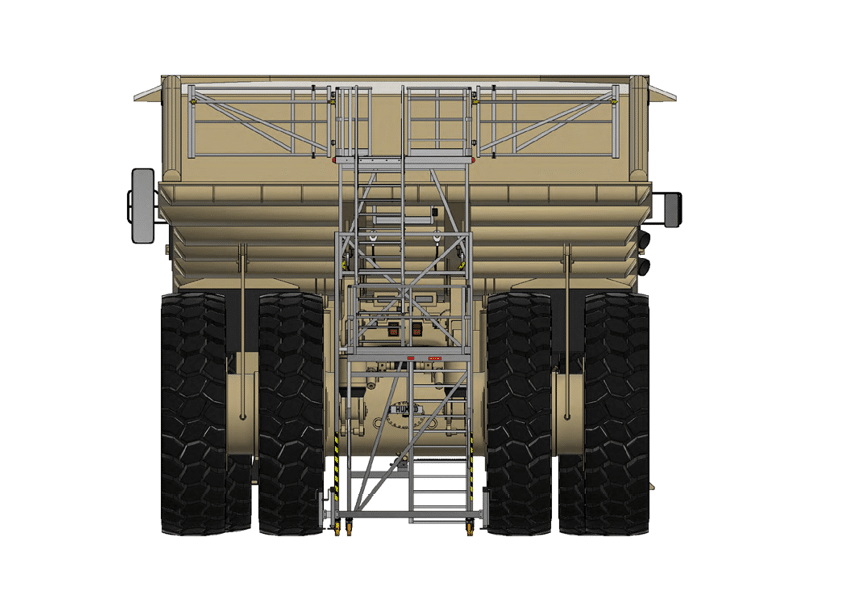

    The Platform is designed to fit the following trucks:

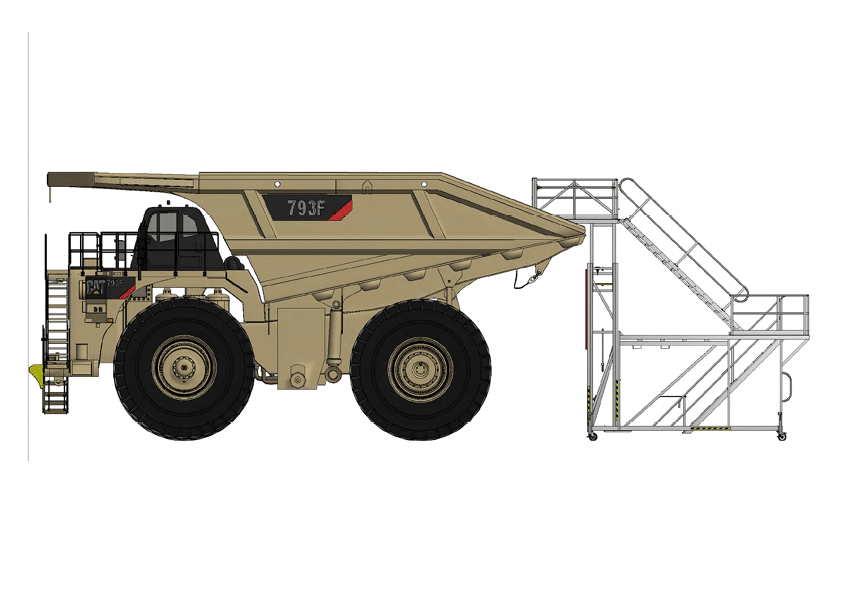

    • CAT 793 F,C and D.
    • CAT 789 D
    • CAT 785 D.
    • Komatsu 830e and 930e
    • Hitachi EH3500, EH4500 and EH5000
    • Liebherr T282
